| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-highway7 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Feeding Width:: | OTHER | Material Of Blade:: | Cr12Mov,HRC58-62 |
|---|---|---|---|
| Production Capacity:: | 8m/min | After-sales Service Provided:: | Online Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support |
| Warranty: | 2 Years | Certification: | CE、BV、ISO |
| Rolling Thinckness:: | 3-4mm | Dimension(L*W*H):: | 6800(L)*1200(W)*1500mm(H) |
| Weight:: | 10T | Use:: | Highway Guardrail |
| Highlight: | 100kw Highway Guardrail Roll Forming Machine,L6800mm Highway Guardrail Roll Forming Machine |
||

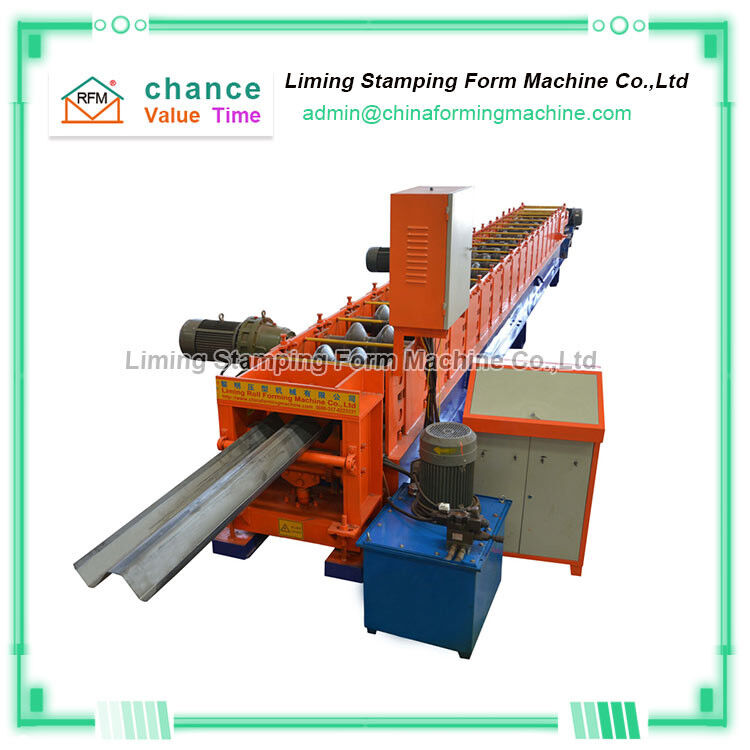

Automatic Modification Highway Guardrail Roll Forming Machine
"Automatic modification highway guardrail roll forming machine" can produce two waves of highway guardrail panels and three waves of highway guardrail panels.
The finished product of the "Automatic modification highway guardrail roll forming machine" will be hot-dipped galvanized, which has the characteristics of anti-corrosion, anti-aging, anti-sun, high resistance, and low temperature. It can be used in outdoor environments for 10-25 years.
Processing flow of "Automatic modification highway guardrail roll forming machine"
Loading (load the steel coil into the internal support hole opener to achieve close support) → plate calibration (correctly guide the strip to the forming host through the feeding guide platform) → hydraulic punching → roll forming → after forming Cutting → The finished product supports the board.
The highway guardrail produced by the "Automatic modification highway guardrail roll forming machine"provides a visual and physical barrier between traffic and work areas.
The finished product of the "Automatic modification highway guardrail roll forming machine" is used to prevent accidents caused by cranes or other mobile equipment, aisles and special equipment in the dock area.
Technical parameters of Automatic Modification Highway Guardrail Roll Forming Machine
| Raw material request: | Q235Mpa hot rolled steel ,black steel or galvanized steel |
| Material thickness: | 2.5mm-4mm |
| Whole line working speed: | max15m/min( 3 pcs x4320mm per min |
| Total power: | about 100kw |
| Input direction: | left to right direction Finished Product information: |
| Product width: | 350mm/460mm |
| Product height: | 69mm |
| Product length: | 4330mm |
| Product tolerance: | 4320mm±1.5mm |
| Space requirement: | Length 45mxWidth 5m xHeight 3m |
