| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-highway 5.7 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 45 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 80set/Year |
| Warranty: | 1.5 Years | Weight: | 12T |
|---|---|---|---|
| Voltage: | 380V60HZ.3Phase | Tickness Of Coil: | 1-3mm |
| Main Power: | 30 KW | Type: | Highway Guardrail Crash Barrier Roll Forming Machine |
| Structure: | 440H Beam | Roduction Capacity: | 15-20M/Min |
| Material Of Roller: | Gcr12, Quench HRC58-62 Plated Chrome | ||
| Highlight: | 20m/min guardrail roll forming machine,16 row guardrail roll forming machine,1mm guardrail roll forming machine |
||

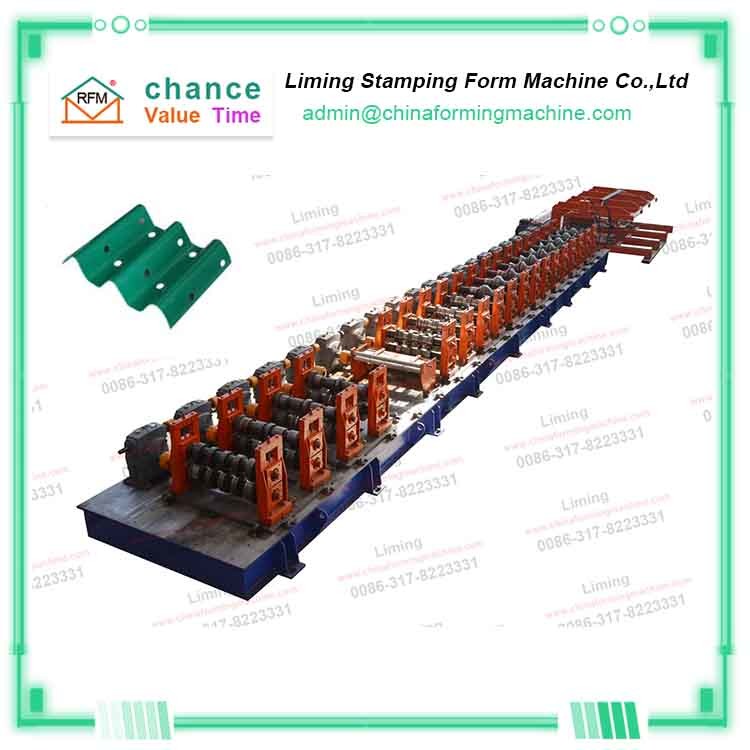

20m / Min16 Row Forming Automatic Guardrail Forming Machine Industry Leading Technology
Liming Press Forming Machinery Co., Ltd. is a company engaged in the design, manufacture, sales and after-sales of automatic guardrail roll forming machines. Our company introduces the technology imported from Finland and uses the forming design software COPRA to customize automatic guardrail roll forming with international standards. machine.
technical parameter of 20m / Min16 Row Forming Automatic Guardrail Forming Machine Industry Leading Technology
| 1 | Applicable material | Galvanized sheet/black iron steel |
| 2 | Coil thickness | 1.5-3mm |
| 3 | Coil width | As the customer's outline drawing requirementsAs the customer's outline drawing requirements |
| 4 | Effective width | Effective width |
| 5 | Main frame | material400H-beam |
| 6 | Solid shaft | diameter 90mm, high quality 45# steel |
| 7 | roller | GCR 15 hard chrome plating |
| 8 | Middle plate thicknessCast Iron Arch | |
| 9 | Forming station | Row 16 |
| 10 | Drive type | Chain or gear box |
| 11 | Main motor power | 22kw, Shanghai Lichao, with reducer |
| 12 | Pump motor | 5.5KW |
| 13 | Forming speed | About 15-20m/min |
| 14 | Hydraulic pump station | 5.5 kilowatts, 40# hydraulic oil |
| 15 | Programmable controller | Delta (Taiwan)/Mitsubishi |
| 16 | Blade material | Cr 12 mov, quenching 58-6 2 ℃ |
| 17 | Frequency converter | Its advantage is to slow down before cutting to ensure The length accuracy is ±1mm, which is far better than the industry standard ±3mm. |
The automatic guardrail roll forming machine produced by our company adopts Siemens transmission system and reasonable overall design, which guarantees sufficient power of the automatic guardrail roll forming machine, which can help you efficiently produce guardrail profiles.
The automatic guardrail roll forming machine also connects all equipment systems and is controlled by a digital PLC electronic control, which saves your production process and labor costs to the greatest extent, and also improves the convenience and safety of the automatic guardrail roll forming machine.
